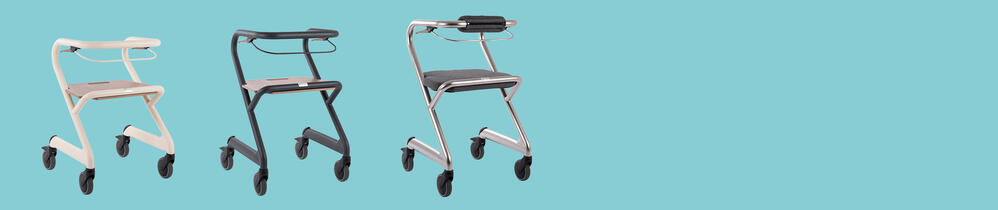

Technical data
| S | M | L | XXL (hand brake) | |
| handle height | 80 cm | 86 cm | 92 cm | 95 cm |
|---|---|---|---|---|
| Seat height | 52 cm | 55 cm | 58 cm | 58 cm |
| Recommended body size | 135 - 165 cm | 150 - 180 cm | 170 - 200 cm | 170 - 210 cm |
| max. user weight | 150 kg | 150 kg | 150 kg | 200 kg |
| Maximum length | 51 cm | 51 cm | 51 cm | |
| Largest width below (wheel) | 56 cm | 56 cm | 56 cm | 68 cm |
| Largest width at top (handle) | Measure 50.5 cm | Measure 50.5 cm | Measure 50.5 cm | 65 cm |
| Distance between the handles | 43 cm | 43 cm | 43 cm | 60 cm |
| Total weight frame | 9.3 kg | 9.7 kg | 9.8 kg | 18 kg |
| Transport dimensions | 51 cm x 56 cm x 80 cm | 51 cm x 56 cm x 86 cm | 51 cm x 56 cm x 92 cm |
Wearing parts list indoor rollator
| Designation | EAN number | |
| Rear wheel foot brake | 4058789009963 | |
|---|---|---|
| Rear wheel hand brake | 4058789009956 | |
| Brake cable (bowden cable) size M | 4058789011300 | |
| Brake cable (bowden cable) size M S | 4058789011843 | |
| Brake cable (bowden cable) size L | 4058789011867 |
Product instructions indoor rollator Page
In this video you will learn how to adjust the brake of the indoor rollator.
In this video, you will learn how to replace the wheels of the indoor rollator.
